AX-215AS
特性• 3-Way Variable Curvature Line Array • MMSS Technology (Mirror-Image Mechanical Suspension Technology) • PM4 Diaphragm Technology
应用场合
• Sports Stadia • Arenas • Exhibition halls
-
产品描述
AX-215AS is our most powerful linear source system, designed for
large format events such as stadiums, touring and festivals. It
incorporates 2×15-inches horn-loaded units for low frequencies
that offer 148 dB peak for a deep response. It also mounts 4x 6.5-
inch transducers for mid frequency range and 3x 1.4” compression
drivers coupled with our exclusive waveguide to achieve a clear
response even over long distances.
The system has a robust flying system for angulation between 0 to
10 degrees, completed with the CHSE215 flying frame made of 8
mm iron that allows a fast flow from the transport dolly (CHST215).
-
详细参数|
Usable bandwidth (+3dB -10dB)
|
35 - 20,000 Hz |
|
Horizontal Coverage (-6dB)
|
110º |
|
Vertical Coverage
|
Depends of the array elements and curvature
|
| Low pitch | |
| characteristic | 2 x 15" Waterproof Woofer |
| impedance | 2 x 8Ω |
| Frequency Response | 35 - 175 Hz |
| Axial Sensitivity (dB SPL,1Watt@1m) | 104 dB |
|
Power handling (AES)
|
2,000 W |
| Maximum (continuous) | 142 dB |
| Maximum (peak) | 148 dB |
| Alto | |
| characteristic | 4 x 6.5" Mid-range Horn |
| impedance | 8Ω |
| Frequency Response | 175 - 1,000 Hz |
| Axial Sensitivity (dB SPL,1Watt@1m) | 106 dB |
| Power handling (AES) | 1,000 W |
| Maximum(continuous) | 142 dB |
| Maximum (peak) | 148 dB |
| High notes | |
| characteristic | 3 x 1.4"Tweeter |
| impedance | 24Ω |
| Frequency Response | 1,000 - 19,000 Hz |
| Axial Sensitivity (dB SPL,1Watt@1m) | 118 dB |
| Power handling(AES) | 210 W |
| Maximum (continuous) | 142 dB |
| Maximum (peak) | 148 dB |
|
Physical data
|
|
| Hanging Accessories | Integral Type |
| Linear Array Vertical Angle Range | 0º ~ 5º (1º Increase Amount) |
|
W x H x D
|
119 x 44 x 72 cm |
|
Weight(net)
|
98 kg |
|
Front Steel
|
Steel grid with anti-corrosion coating and foam
|
| Cabinet |
First grade Baltic birch plywood
|
|
Connectors
|
2 x NL8 |
| Finish | warnex black textured coating |
-

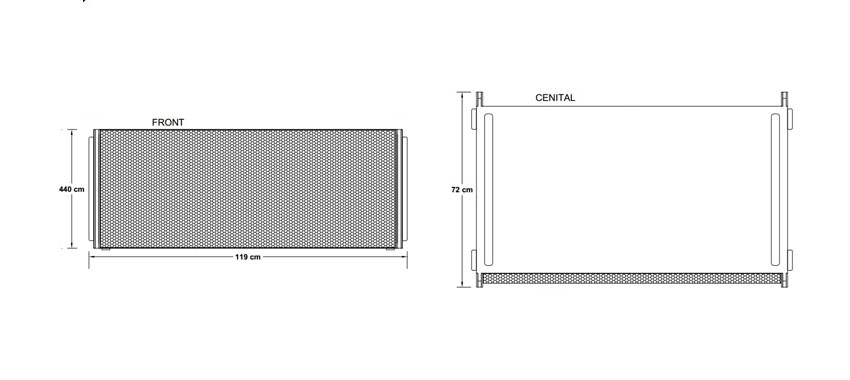

尺寸规格
-
