Pietra Calacatta

SUB-18F

特性
    • 18-inch subwoofer
    • MMSS technology (Mirror-image Mechanical Suspension System)
    • Maltcross technology
    • Waterproof driver

应用场合


-
产品描述
The SUB-18F is a high-performance single 18-inch subwoofer featuring a weather-resistant 18-inch driver and incorporating MMSS (Mirror-image Mechanical Suspension System) and MALTCROSS technologies. MMSS technology ensures symmetrical excursion of the moving assembly, resulting in reduced harmonic distortion. MALTCROSS represents the latest in thermal management technology; our objective was to ensure consistent, reliable, and optimal driver performance within the system, maximizing total SPL while maintaining stability. Consequently, the SUB-18F delivers high sensitivity and high SPL, adding powerful, impactful, and commanding bass to the sound system.
-
详细参数
 Frequency Response (-10dB ) 35 - 170 Hz
Preset Frequency 35 - 80 Hz
Speaker 1 X 18"
Impedance
Power handling (AES) 1400 W
Sensitivity 98 dB
Maximum (continuous) 131 dB
Maximum (peak) 137 dB

Physical data
W x H x D 68 x 54 x 72 cm
Weight(net) 37 kg
Front Steel  Steel grid with anti-corrosion coating and foam
Cabinet Baltic birch
Connectors  2 x NL4
Speaker Surface Warnex  black textured coating

Steel grid with anti-corrosion coating and foam

-

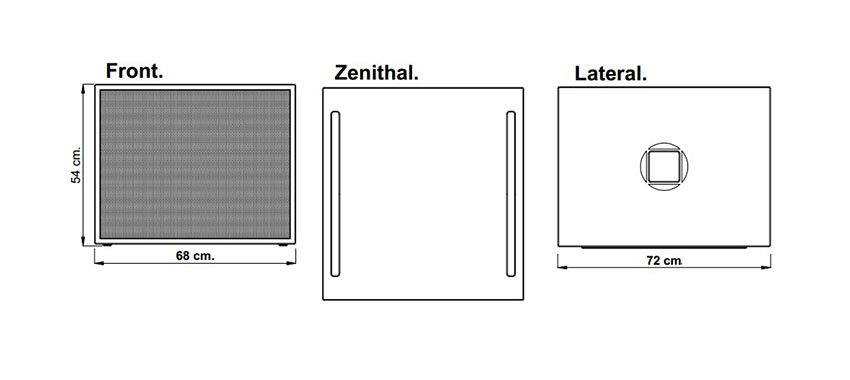

尺寸规格


  • -
    资料下载
