SB-15
特性Loudspeaker: 1 x 15" Frequency Response: 38 – 200 Hz (+3 dB / -10 dB) Power Handling: 1000 W (AES), 2000 W (Program) Sensitivity: 97 dB Max SPL: 130 dB (continuous), 136 dB (peak) Nominal Impedance: 8 Ω
应用场合
-
产品描述
The SB-15 is a high-performance single 15-inch subwoofer featuring a 15-inch weather-resistant woofer. It utilizes MMSS (Mirror-image Mechanical Suspension System) technology, which ensures symmetrical excursion of the moving assembly to achieve lower harmonic distortion. With high sensitivity and high SPL capabilities, the SB-15 delivers powerful, impactful, and authoritative bass to any sound system. Its compact enclosure design minimizes unwanted rear sound radiation, providing high SPL and precise low-frequency reproduction.
Suitable for both permanent installations and portable applications, the SB-15 is an ideal choice for demanding environments such as small outdoor events, bars, theaters, KTVs, and clubs.
-
详细参数| Frequency Response (-10dB ) | 38 - 200 Hz |
| Present Frequency | 38 - 100 Hz |
| Horizontal Coverage | 1 x 15" |
| Impedance | 8Ω |
| Power handling (AES) | 1000 W |
| Sensitivity | 97 dB |
| Maximum (continuous) | 130 dB |
| Maximum (peak) | 136 dB |
| Physical date | |
| W x H x D | 66 x 44.5 x 50 cm |
| Weight(net) | 32 kg |
| Front Steel | Steel grid with anti-corrosion coating and foam |
| Cabinet | Baltic birch |
| Connectors | 2 x NL4 |
| Speaker Surface | Warnex black textured coating |
-

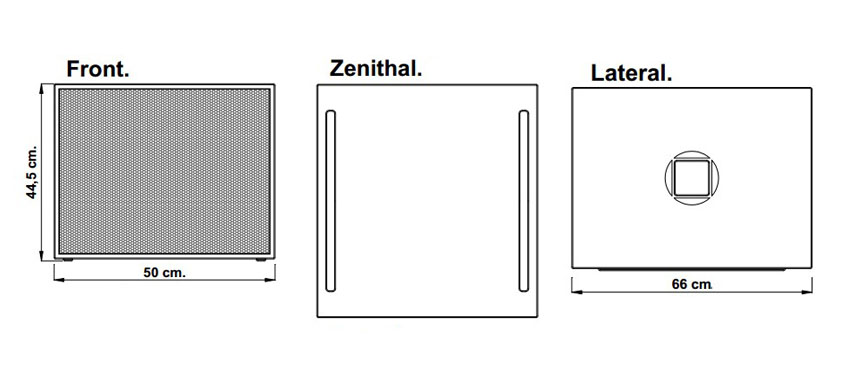

尺寸规格
-
资料下载
