STAR-110P
特性• Two-way multi-purpose loudspeaker • Waterproof loudspeaker
应用场合
-
产品描述
The STAR-110P is a high-performance, multi-purpose loudspeaker featuring a built-in two-way crossover, a 10-inch woofer, and three piezoelectric tweeters. The woofer utilizes a voice coil constructed from high-quality copper wire and fiberglass, delivering high linearity and low harmonic distortion. The piezoelectric tweeters offer excellent linearity, minimal distortion, and superior transient response, resulting in clear, natural high-frequency reproduction.
Designed for versatility, the STAR-110P can be deployed in arrays of up to 20 units for line-array PA systems or used as a stage monitor. It is ideal for fixed installations in high-end venues such as bars, KTVs, and clubs, as well as for mobile applications requiring high audio quality. Low-frequency performance can be further enhanced by pairing the unit with SB-18 or SB218 subwoofers.
-
详细参数| System | |
| Frequency Response (-10dB ) | 80 - 18,000 Hz |
| Present Frequency | 80 - 18,000 Hz |
| Horizontal Coverage | 90º |
| Vertical Coverage | 40º |
| Low Pitch | 1 x 10" trumpet |
| High Notes | 3 x 1”Piezoelectric tweeter |
| Impedance | 8Ω |
| Power Handling (AES) | 300 W |
| Sensitivity | 95 dB |
| Maximum (continuous) | 123 dB |
| Maximum(peak) | 129 dB |
| Physical date | |
| W x H x D | 57 x 30.5 x 29 cm |
| Weight(net) | 12 kg |
| Front Steel | Steel grid with anti-corrosion coating and foam |
| Cabinet | Baltic birch |
| Connectors | 2 x NL4 |
| Speaker Surface | Warnex black textured coating |
-

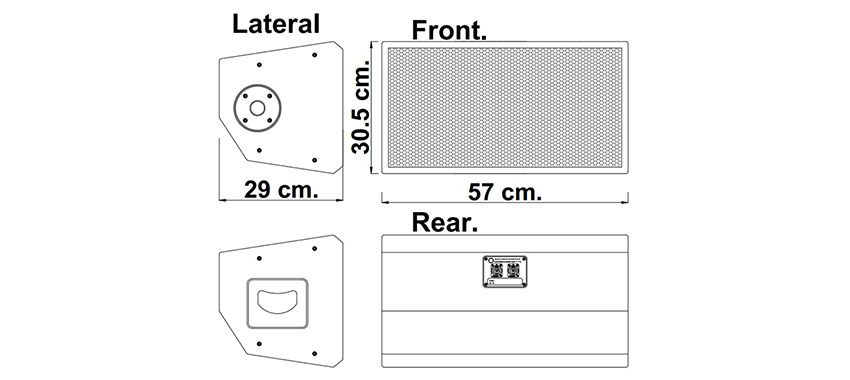

尺寸规格-
