Pietra Calacatta

STAR-110

特性
    • Two-way multipurpose loudspeaker
    • MMSS technology (Mirror-Image Mechanical Suspension System)
    • MALTCROSS technology
    • Weather-resistant loudspeaker
    • PM4 diaphragm technology

应用场合


-
产品描述
The STAR-110 is a high-performance, multi-purpose, two-way loudspeaker featuring a 10-inch woofer and a 1-inch tweeter. The woofer utilizes MMSS (Mirror-image Mechanical Suspension System) and MALTCROSS technologies; MMSS ensures symmetrical excursion of the moving assembly for reduced harmonic distortion, while MALTCROSS maximizes total SPL and ensures stability. The tweeter employs PM4 diaphragm technology—utilizing an advanced polymer material previously unused in audio applications—to create a robust connection between the dome and the voice coil former, resulting in superior high-power, long-duration performance and more natural sound reproduction. As a high-performance, multi-purpose, two-way loudspeaker, the STAR-110 is suitable for a wide range of applications: it can be configured into a line array PA system (using up to 20 units) or serve as a stage monitor. It is ideal for fixed installations in high-end venues such as bars, KTVs, and clubs, as well as for mobile performance setups requiring high audio quality. Low-frequency performance can be further enhanced by pairing the unit with SB-18 or SB218 subwoofers.
-
详细参数
System
Frequency Response(-10dB ) 60 - 18,000 Hz
Present Frequency 60 - 18,000 Hz
Horizontal Coverage 90º
Vertical Coverage 40º
Low Pitch 1 x 10" trumpet
High Notes 1 x 1" trumpet
Impedance
Power Handling (AES) 600 W
Sensitivity 97 dB
Maximum(continuous) 128 dB
Maximum (peak) 134 dB

Physical date
W x H x D 57 x 30.5 x 29 cm
Weight(net) 14 kg
Front Steel  Steel grid with anti-corrosion coating and foam
Cabinet Baltic birch
Connectors  2 x NL4
Speaker Surface Warnex black textured coating

-

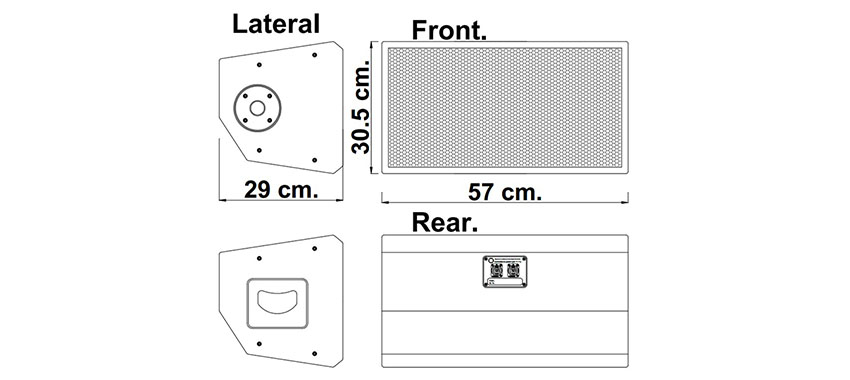

尺寸规格


  • -
    资料下载
