STAR-106
特性• Two-way multipurpose loudspeaker • MMSS technology (Mirror-Image Mechanical Suspension System) • Water-resistant loudspeaker
应用场合
-
产品描述
The STAR-106 is a versatile, built-in two-way loudspeaker featuring a 6-inch waterproof woofer and two piezoelectric tweeters. The woofer utilizes MMSS (Mirror-image Mechanical Suspension System) technology, ensuring symmetrical and linear displacement of the moving assembly; this minimizes distortion and effectively addresses compensation issues. The piezoelectric tweeters offer excellent linearity, low distortion, and superior transient response, resulting in clear, natural high-frequency reproduction.
The STAR-106 is a cost-effective, versatile two-way loudspeaker suitable for a wide range of applications, including line array PA systems, fixed installations in venues such as theaters, schools, and bars, as well as mobile setups requiring high audio quality.
-
详细参数| System | |
| Frequency Response (-10dB ) | 80 - 18,000 Hz |
| Present Frequency | 80 - 18,000 Hz |
| Horizontal Coverage | 90º |
| Vertical Coverage | Depends on the accessories. |
| Low pitch | 1 x 6" trumpet |
| High notes | 2 x 1”Piezoelectric tweeter |
| Impedance | 8Ω |
| Power handling (AES) | 200 W |
| Sensitivity | 92 dB |
| Maximum (continuous) | 118 dB |
| Maximum (peak) | 124 dB |
| Physical date | |
| W x H x D | 50 x 19 x 15 cm |
| Weight(net) | 8 kg |
| Front Steel | Steel grid with anti-corrosion coating and foam |
| Cabinet | Baltic birch |
| Connectors | 2 x NL4 |
| Speaker Surface | Warnex black textured coating |
-

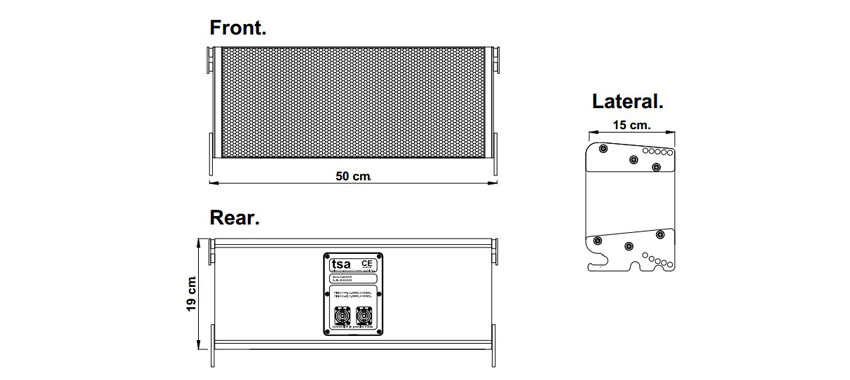

尺寸规格-
资料下载
