AX-126

特性
    • Built-in 2-way multi-purpose mid-high frequency loudspeaker

应用场合


-
产品描述
The AX-126 is a versatile, built-in two-way mid-high frequency loudspeaker featuring dual 6.5-inch woofers and a piezoelectric tweeter. The woofers deliver high dynamic range and low distortion, while the piezoelectric tweeter offers excellent linearity, minimal distortion, and superior transient response, resulting in clear, natural high-frequency reproduction. As a cost-effective, versatile two-way loudspeaker, the AX-126 is suitable for a wide range of applications—including line array PA systems, fixed installations in venues such as theaters, schools, and bars, as well as mobile setups requiring high-quality audio performance.
-
详细参数

Frequency Response(-10dB ) 125 - 20,000 Hz
Present Frequency 125 - 20,000 Hz
Horizontal Coverage 120º
Vertical Coverage 40º
Low pitch 2 x 6.5" trumpet
High notes 1 x 1" Piezoelectric tweeter
Impedance
Power handling (AES) 500 W
Sensitivity 94 dB
Maximum (continuous) 124 dB
Maximum (peak) 130 dB

Physical date
W x H x D 22 x 22 x 50 cm
Weight(net) 14 kg
Front Steel  Steel grid with anti-corrosion coating and foam
Cabinet Baltic birch
Connectors  2 x NL4
Speaker Surface Warnex  black textured coating

-

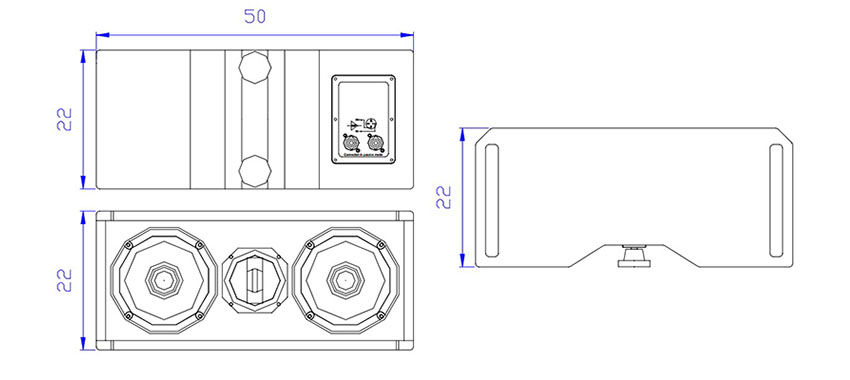

尺寸规格


  • -
