P-115
特性• High-performance built-in 2-way speakers • PM4 diaphragm technology
应用场合
-
产品描述
The P-115 is a high-performance, internally bi-amplified two-way loudspeaker featuring one 15-inch woofer and one 1-inch tweeter. The woofer incorporates an optimized voice coil length to increase linear excursion, extending its frequency response while minimizing harmonic distortion and enhancing the driver's dynamic range. The tweeter utilizes PM4 diaphragm technology—a system employing advanced polymer materials never before used in the audio industry—to establish a stronger bond between the dome and the voice coil former. This design enables the driver to perform more reliably during prolonged, high-power operation, resulting in a more natural and authentic sound.
-
详细参数| Frequency Response(-10dB ) | 55 - 20,000 Hz |
| Preset Frequency | 55 - 20,000 Hz |
| Horizontal Coverage | 90º |
| Vertical Coverage | 40º |
| Low pitch | 1 x 15" Woofer |
| High notes | 1 x 1" Tweeter |
| Impedance | 8Ω |
| Power handling (AES) | 500 W |
| Sensitivity | 98 dB |
| Maximum (continuous) | 128 dB |
| Maximum(peak) | 134 dB |
| Physical data | |
| Hanging Accessories | 可选配 |
| W x H x D | 45 x 73 x 40 cm |
| Weight(net) | 16 kg |
| Front Steel | Steel grid with anti-corrosion coating and foam |
| Cabinet | Finnish Birch |
| Connectors | 2 x NL4 |
| Speaker Surface | Warnex black textured coating |
-

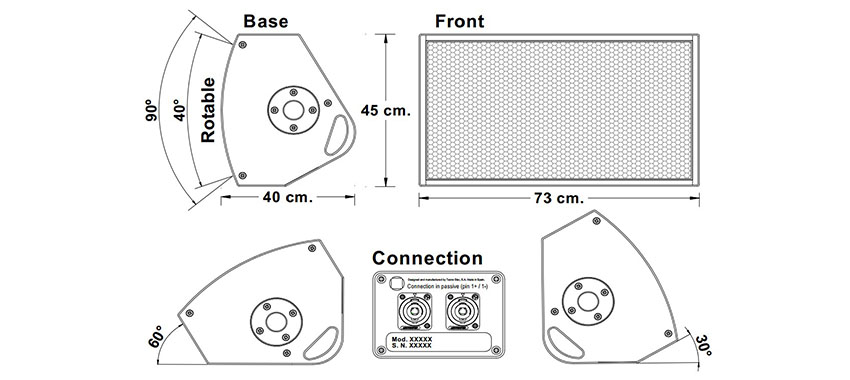

尺寸规格-
资料下载
