Pietra Calacatta

P-112

特性
    • High-performance built-in 2-way speakers
    • PM4 diaphragm technology


应用场合


-
产品描述
The P-112 is a high-performance, self-contained two-way loudspeaker featuring a 12-inch woofer and a 1-inch tweeter. The woofer incorporates an optimized voice coil length to increase linear excursion, extending its frequency response while minimizing harmonic distortion and enhancing the driver's dynamic range. The tweeter utilizes PM4 diaphragm technology—a system employing an advanced polymer material never before used in the audio industry—to establish a stronger bond between the dome and the voice coil former. This design enables the driver to perform more reliably during prolonged, high-power operation, resulting in a more natural and authentic sound.
-
详细参数
Frequency Response (-10dB ) 65 - 20,000 Hz
Preset Frequency 65 - 20,000 Hz
Horizontal Coverage 90º
Vertical Coverage 40º
Low pitch 1 x 12" 低音喇叭
High notes 1 x 1" 高音喇叭
impedance
Power handling  (AES) 500 W
Sensitivity 96 dB
Maximum (continuous) 126 dB
Maximum (peak) 132 dB

Physical data
Hanging Accessories Optional
W x H x D 36 x 61 x 33 cm
Weight(net) 12 kg
Front Steel  Steel grid with anti-corrosion coating and foam
Cabinet Finnish Birch
Connectors  2 x NL4
Speaker Surface Warnex black textured coating

-

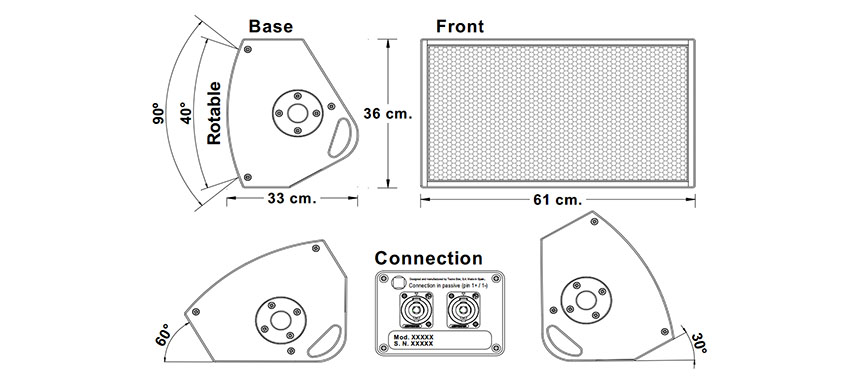

尺寸规格


  • -
    资料下载
