M-12C
特性• 2-Way Coaxial Speaker • High Sensitivity • Low-Distortion Copper Voice Coil Circuit • Excellent Linear Frequency Response • MP4 Diaphragm Technology
应用场合
-
产品描述
The M-12C is a cost-effective, self-contained 2-way coaxial loudspeaker featuring a single 12-inch coaxial driver. Characterized by high sensitivity, exceptionally linear frequency response, a low-harmonic copper-coil circuit, and high power handling, it delivers outstanding sound quality.
The M-12C serves as a high-performance, low-impedance sound reinforcement system. It can be configured into various arrays—including horizontal line arrays and 360-degree vertical line arrays—allowing for flexible combinations tailored to specific requirements. It is ideally suited for use in KTV venues, upscale clubs, home theater systems, bars, theaters, stadiums, and other environments with demanding audio standards.
-
详细参数| Preset Frequency | 80 - 16,000 Hz |
| Coverage Angle | 90º |
| Characteristic | 1 x 12" Coaxial Speaker |
| Impedance | 8Ω |
| Power handling (AES) | 250 W |
| Sensitivity | 100 dB |
| Maximum (continuous) | 127 dB |
| Maximum(peak) | 133 dB |
| Physical data | |
| W x H x D | 35.5 x 37.7 x 27.5 cm |
| Weight(net) | 8 kg |
| Front Steel | Steel grid with anti-corrosion coating and foam |
| Cabinet | First grade Baltic birch plywood |
| Connectors | 2 x NL4 |
| Speaker Surface | Warnex black textured coating |
-

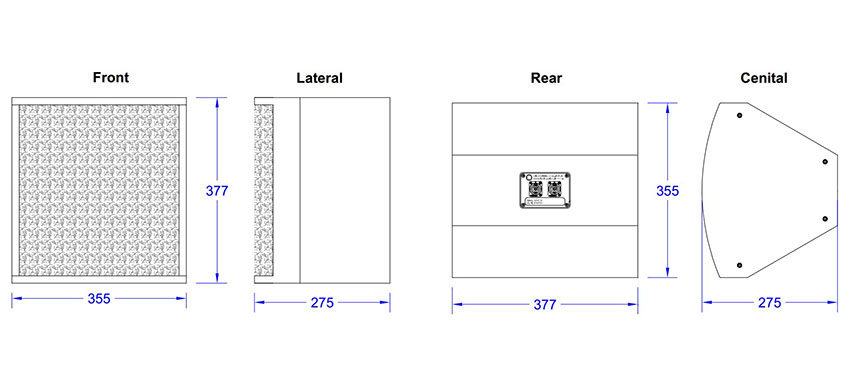

尺寸规格-
资料下载
