M-8C
特性• 2-Way Coaxial Speaker • High Sensitivity • Low Distortion • Wide Frequency Response
应用场合
-
产品描述
The M-8C is a cost-effective, self-contained 2-way coaxial loudspeaker featuring a single 8-inch coaxial driver. Boasting high sensitivity (96 dB), low distortion, and a wide frequency response, it delivers exceptional sound quality. The M-8C can be configured to form horizontal line arrays or 360-degree vertical line arrays, allowing for various combinations tailored to specific requirements. It is ideally suited for use in public venues such as restaurants and bars.
-
详细参数| Frequency Response | 90 - 18,000 Hz |
| Coverage Angle | 90º |
| Characteristic | 1 x 8" Coaxial Speaker |
| Impedance | 8Ω |
| Power handling (AES) | 60 W |
| Sensitivity | 96 dB |
| Maximum (continuous) | 117 dB |
| Maximum (peak) | 123 dB |
| Physical data | |
| W x H x D | 23.6 x 25.1 x 18.4 cm |
| Weight(net) | 4 kg |
| Front Steel | Steel grid with anti-corrosion coating and foam |
| Cabinet | First grade Baltic birch plywood |
| Connectors | PIN+ / PIN- |
| Speaker Surface | Warnex black textured coating |
-

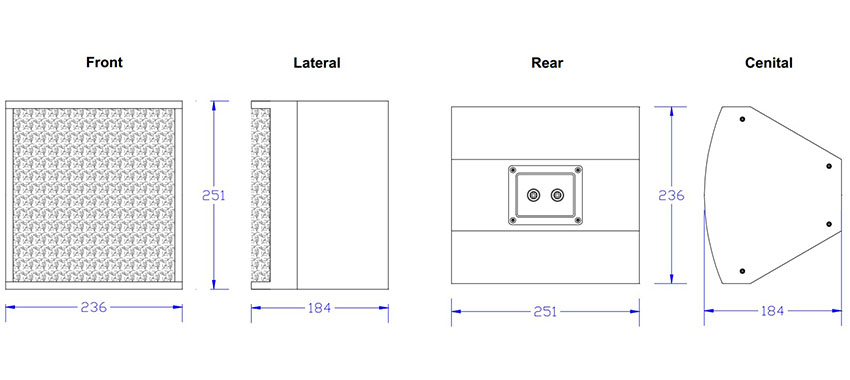

尺寸规格
-
