Pietra Calacatta

MULTY15F

特性
    • 2-Way Multi-Purpose Loudspeaker
    • MMSS (Mirror-Image Mechanical Suspension) Technology
    • MALTCROSS Technology

应用场合


-
产品描述
The MULTY15F is a high-performance, two-way, multi-purpose loudspeaker featuring one 15-inch weather-resistant woofer and one 1.4-inch compression driver. The woofer incorporates MMSS technology (Mirror Mechanical Suspension System), which ensures symmetrical positive and negative excursion of the moving assembly, thereby achieving significantly lower harmonic distortion. MALTCROSS represents our latest thermal management technology; in addressing heat dissipation challenges, our clear objective is to ensure that the driver unit delivers consistent, reliable, and optimal performance within the system—maximizing overall Sound Pressure Level (SPL) while guaranteeing stability. The compression driver utilizes a titanium diaphragm, capable of delivering exceptional SPL across an extremely wide frequency range to produce sound that is both clear and transparent.
-
详细参数
Frequency Response (-10dB ) 50 - 20,000 Hz
Preset Frequency 50 - 20,000 Hz
Horizontal Coverage 80º
Vertical Coverage 50º

Low pitch
Trumpet 1 x 15"Woofer
Impedance:
Power handling (AES) 500W

High pitch
Trumpet 1 x 1.4"Tweeter
Impedance
Power handling (AES) 70 W

Sound Pressure Level
Sensitivity 99 dB
Maximum (continuous) 130 dB
Maximum(peak) 136 dB

Physical data
W x H x D 45 x 73 x 58 cm
Weight(net) 26 kg
Front Steel  Steel grid with anti-corrosion coating and foam
Cabinet First grade Baltic birch plywood
Connectors  2 x NL4
Speaker Surface Warnex black textured coating

Steel grid with anti-corrosion coating and foam

-

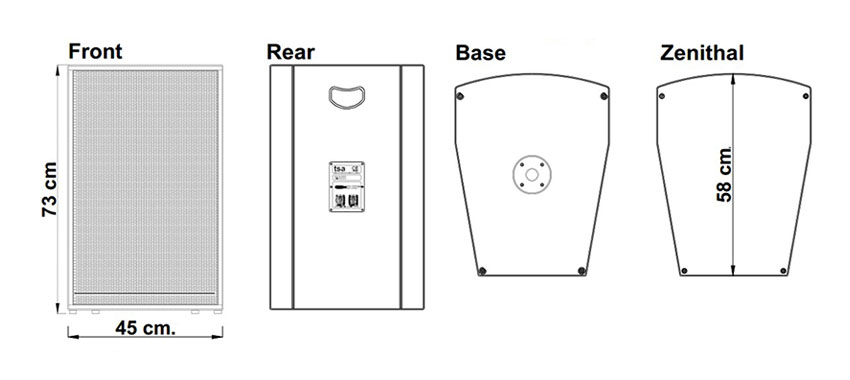

尺寸规格


  • -
