Pietra Calacatta

MULTY12F

特性
    • 2-Way Multi-Purpose Loudspeaker
    • MMSS (Mirror-Image Mechanical Suspension) Technology
    • MALTCROSS Technology
    • PM4 Diaphragm Technology

应用场合


-
产品描述
The MULTY12F is a high-performance, two-way, multi-purpose loudspeaker featuring one 12-inch woofer and one 1-inch high-frequency driver. The woofer incorporates both MMSS (Mirror Mechanical Suspension System) and MALTCROSS technologies. MMSS technology ensures symmetrical positive and negative excursion of the moving assembly, thereby achieving significantly lower harmonic distortion. MALTCROSS represents our latest innovation in thermal management; our clear objective regarding heat dissipation is to ensure that the driver delivers consistent, reliable, and optimal performance within the system—maximizing overall Sound Pressure Level (SPL) while guaranteeing stability. The high-frequency driver utilizes PM4 diaphragm technology, which employs advanced polymer materials—previously unprecedented in the audio industry—to establish a stronger bond between the dome and the voice coil former. This design enhances the driver's performance during prolonged, high-power operation, resulting in a more natural and authentic sound reproduction.
-
详细参数
Frequency Response (-10dB ) 55 - 20,000 Hz
Preset Frequency 55 - 20,000 Hz
Horizontal Coverage 90º
Vertical Coverage 40º
Low Pitch 1 x 12" Woofer
Low Pitch 1 x 1"Tweeter
 Impedance
Power handling (AES) 600 W
Sensitivity 98 dB
Maximum (continuous) 129 dB
Maximum(peak) 135 dB

Physical data
W x H x D 36 x 61 x 46 cm
Weight(net) 21 kg
Front Steel  Steel grid with anti-corrosion coating and foam
Cabinet First grade Baltic birch plywood
Connectors  2 x NL4
Speaker Surface Warnex black textured coating

-

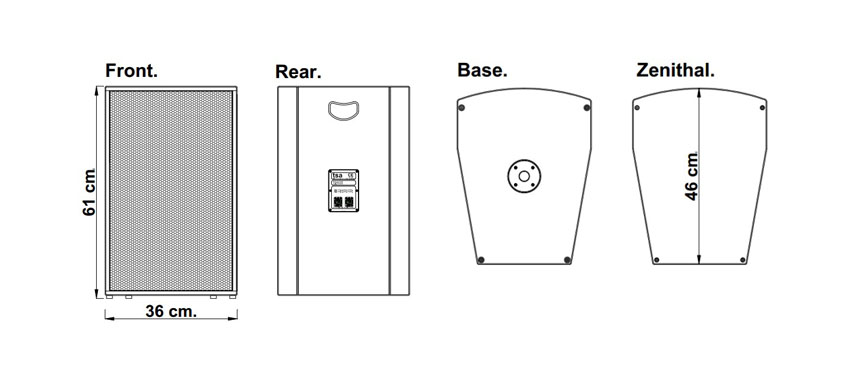

尺寸规格


  • -
