Pietra Calacatta

CL8/T

特性
    • Two-way coaxial ceiling speaker
    • Selectable 100V constant-voltage and 8Ω constant-impedance modes
    • Easy to install


应用场合


-
产品描述
The CL8/T is a built-in two-way coaxial ceiling speaker featuring a single 8-inch coaxial driver. Designed specifically for public address applications, it delivers high sensitivity, low distortion, a wide frequency response, and excellent sound quality. It supports both 8Ω low-impedance and 100V constant-voltage operation, with four selectable power settings for the 100V mode. It features a white ABS back enclosure and is designed for easy installation.
-
详细参数
Frequency Response 40 - 20,000 Hz
Horizontal Coverage 90º
characteristic 1 x 8" Coaxial speaker
Impedance
Power handling 55 W (RMS,8Ω)
  1.5 / 2.5 / 5 / 10 W (100V)
Sensitivity 91 dB,1w@1m

Other
Uniform diameter 280 mm
Hole diameter 245 mm
Depth 210 mm
Weight 2.8 kg

-

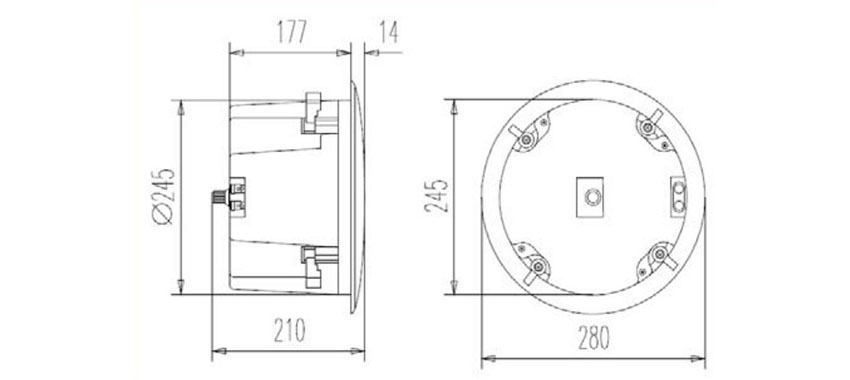

尺寸规格


  • -
    资料下载
