CL5/T
特性• Two-way coaxial ceiling speaker • Selectable 100V constant-voltage and 8Ω constant-impedance modes • Easy to install
应用场合
-
产品描述
The CL5/T is a built-in two-way coaxial ceiling speaker featuring a 5-inch coaxial driver. Designed specifically for public address applications, it offers high sensitivity, low distortion, wide frequency response, and excellent sound quality. It supports both 8Ω (low-impedance) and 100V (constant-voltage) operation, with three selectable power settings for the 100V mode. It features a white ABS back-can for easy installation.
-
详细参数| Frequency Response | 55 - 20,000 Hz |
| Coverage angle | 90º |
| characteristic | 1 x 5" Coaxial speaker |
| Impedance | 8Ω |
| Power handling | 30 W (RMS,8Ω) |
| 1.5 / 3 / 6 W (100V) | |
| Sensitivity | 89 dB，1w@1m |
| Other | |

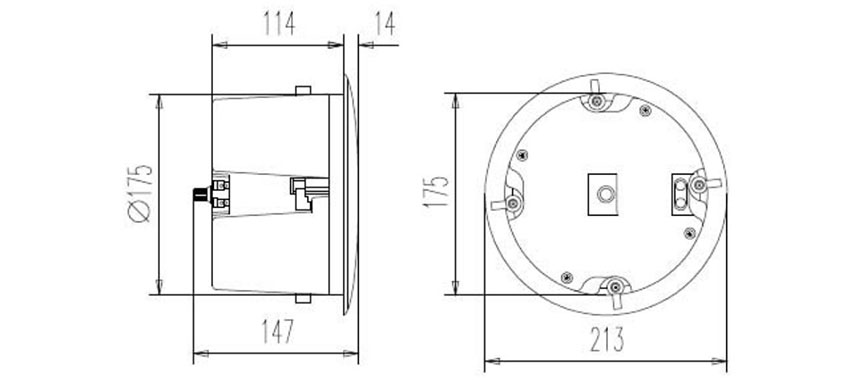

| Uniform diameter | 213 mm |
| Hole diameter | 175 mm |
| depth | 147 mm |
| weight | 1.5 kg |
-
