AX-112ND
特性• 2-way Line Array • MMSS Technology (Mirror-Image Mechanical Suspension Technology)
应用场合
-
产品描述

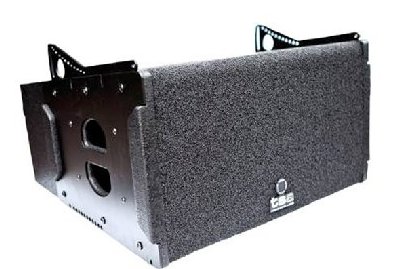

The AX-112ND line array features a two-way system comprising a 12-inch woofer and a 1.4-inch high-frequency driver. The woofer incorporates MMSS technology (Mirror-Image Mechanical Suspension System), which ensures symmetrical positive and negative excursion of the moving components, thereby achieving significantly lower harmonic distortion. The high-frequency driver utilizes advanced polymer materials to enhance performance and deliver a more natural sound.
-
详细参数| Frequency Response | 50- 19,000 Hz(+3dB-10dB) |
| Horizontal Coverage | 90º |
| Vertical Coverage | Depends of the array elements and curvature |
| Maximum(peak) | 134dB |
| Maximum(continuous) | 128dB |
| Low Pitch | |
| Characteristic | 1 x 12" Woofer |
| Impedance | 8Ω |
| Power handling (AES) | 700W |
| High notes | |
| Characteristic | 1 x 1.4" Tweeter |
| Impedance | 8Ω |
| Power handling (AES) | 140W |
| Physical data | |
| Hanging Accessories | Integral Type |
| Linear Array Vertical Angle Range | 0º ~ 10º (1ºIncrease Amount) |
| W x H x D | 33 x 55 x 62 cm |
| Weight(net) | 31 kg |
| Front Steel | Steel grid with anti-corrosion coating and foam |
| Cabinet | First grade Baltic birch plywood |
| Connectors | 2 x NL4 |
| Speaker Surface |
warnex black textured coating |
-

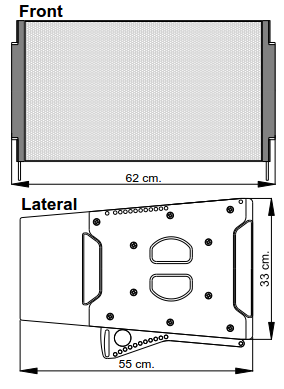

尺寸规格
-
