AX-212/3V
特性• 3-Way Variable Curvature Line Array • MMSS Technology (Mirror-Image Mechanical Suspension Technology) • PM4 Diaphragm Technology
应用场合
-
产品描述
The AX-212/3V is a variable-curvature line array sound source featuring a three-way system, comprising two 12" woofers, two 6.5" mid-range drivers with low harmonic distortion, and three 0.8" waveguide-coupled high-frequency drivers. The low-frequency section utilizes a bass-reflex enclosure design, incorporating MMSS technology (Mirror-Image Mechanical Suspension System) and a forced-air convection, low-power compression circuit. MMSS technology ensures symmetry between the positive and negative excursions of the moving components, thereby achieving significantly lower harmonic distortion. The mid-range drivers employ 2" aluminum voice coils paired with nylon-fiberglass formers to further minimize harmonic distortion. The high-frequency drivers feature PM4 diaphragm technology—a system utilizing advanced polymer materials never before applied in the audio industry—which establishes a stronger bond between the dome and the voice coil former; this enhancement allows the drivers to perform more reliably under sustained high-power operation, delivering a more natural and authentic sound.
-
详细参数| Usable bandwidth(+3dB -10dB) | 50 - 20,000 Hz |
| Horizontal Coverage (-6dB) | 100º |
| Vertical Coverage | Depends of the array elements and curvature |
| Low Pitch | |
| Characteristic | 2 x 12" Woofer |
| Frequency Response | 50 - 400 Hz |
| Axial Sensitivity (dB SPL,1Watt@1m) | 103 dB |
| Power handling (AES) | 1,400 W |
| Maximum (continuous) | 137.5 dB |
| Maximum (peak) | 143.5 dB |
| Alto | |
| Characteristic | 2 x 6.5" Mid-range Horn |
| Frequency Response | 400 – 2,400 Hz |
| Axial Sensitivity (dB SPL,1Watt@1m) | 106 dB |
| Power handling (AES) | 500 W |
| Maximum (continuous) | 136 dB |
| Maximum (peak) | 142 dB |
| 高音 | |
| Characteristic | 3 x 0.8"Tweeter |
| Frequency Response | 2,400 – 20,000 Hz |
| Axial Sensitivity (dB SPL,1Watt@1m) | 112 dB |
| Power handling (AES) | 210 W |
| Maximum(continuous) | 138.2 dB |
| Maximum (peak) | 144.2 dB |
| Physical data | |
| Hanging Accessories | Integral Type |
| Linear Array Vertical Angle Range | 0º / 1.25º / 2.5º / 5º / 10º |
| W x H x D | 100 x 38.5 x 52 cm |
| Weight(net) | 78 kg |
| Front Steel | Steel grid with anti-corrosion coating and foam |
| Cabinet | First grade Baltic birch plywood |
| Connectors | 2 x NL4 |
| Finish | warnex black textured coating |
-

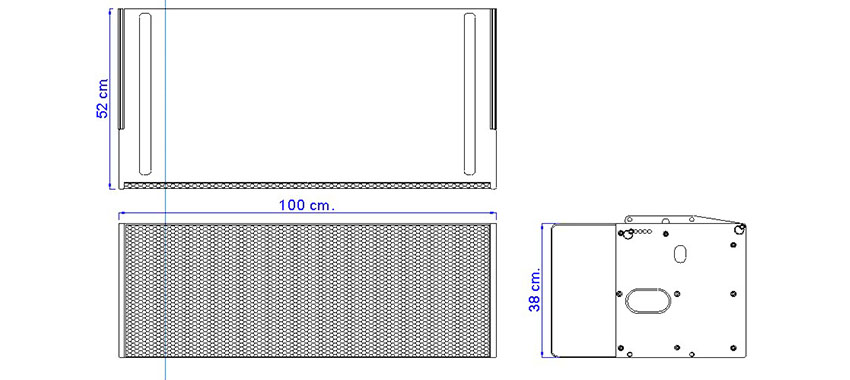

尺寸规格
-
